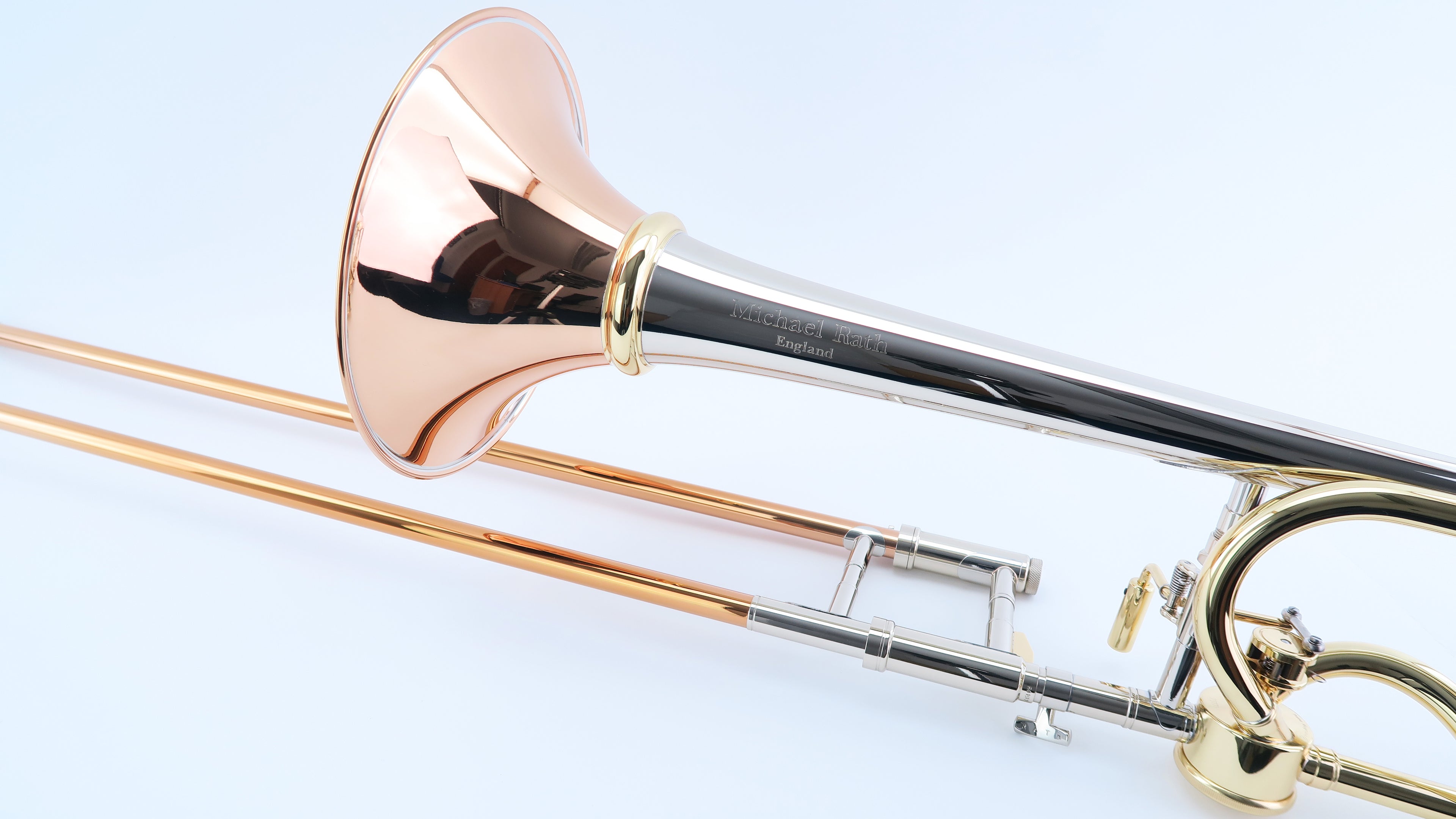

Michael Rath Custom Trombone bell flares offer a wide range of tonal characteristics, each material giving a variety and flexibility of sound. They are available in yellow brass (70% copper, 30% zinc), gold brass (85% copper, 15% zinc), red brass (90% copper, 10% zinc) and nickel silver.

The higher the copper content in the material, the darker and warmer the sound. For example, the gold and red brass are more consistent in tone than yellow brass. However yellow brass is more flexible in terms of sound than gold and red.

Nickel silver bells tend to produce a very clear sound, and have a more focussed sound and feel than a brass bell, but without becoming excessively bright.

When coupled with the right main slide, tuning slide and leadpipe, nickel bells can also sound dark, full and resonant, particularly on our bass trombones.

For most players our standard bell size and weight will be the best choice – 8 1/2″ for the Rath R4F.

Bell flares can also be ordered not only in standard weight but also in light and heavy weights.

All Michael Rath bells are constructed in two pieces, a flare and a spout, allowing us to select the most appropriate gauge (or material thickness) for the bell flare and spout independently. They are produced entirely by hand in our workshop and are finished in clear lacquer as standard, although various other finishes are available.

Bell flares are stamped with the specification indicating the type and gauge of material used. For example, a bell stamped “750R” is made from red brass (R); with a flare gauge of 0.7mm and a spout gauge of 0.5mm.

Michael Rath slides are available in three different materials for the outer slide – yellow brass, bronze and nickel silver.

A nickel silver slide allows a more articulate, brighter sound than yellow brass or bronze and it can also feel more open on some component combinations. A bronze slide typically sounds darker and feels more centred. Bronze can be an excellent choice, for the R4 or R9 models, for a player searching for a dark, symphonic sound. Yellow brass slides sit in between nickel silver and bronze in terms of their tonal characteristics and feel.

Michael Rath slides feature dual radius nickel slide bows and an interchangeable leadpipe system. The connection, slide to bell section, has a locking system unique to our instruments.

The advantage of this system over a regular screw fitting is that the slide matches directly to the gooseneck, without any step in the bore.

Michael Rath tuning slides are available in four different materials – yellow, gold and red brass, and nickel silver. They all have a dual radius design as it increases the response of the instrument.

Yellow brass and nickel silver tuning slides allow for clearer articulations than gold or red brass and can feel slightly more open. Gold and red brass tuning slides, on the other hand, are generally a better compliment to yellow brass bell flares.

Bb tenor trombones have a balance weight fitted as standard, whilst the tuning slides of Bb/F tenor trombones and bass trombones are usually supplied without counterweights. However all tuning slides can be ordered with fixed balance weights.

Michael Rath weights are fitted with nuts with a screw thread allowing a player to adjust to a preferred balance. Alternatively a detachable weight system is also available.

Many existing players have found that adding weight improves the balance of the instrument, while also aiding focus, centre and projection.

There are three valve options available for Michael Rath Custom trombones: the René Hagmann valve, the Willson Rotax valve and the Voigt valve.

Each valve has its own distinct playing characteristics. The Hagmann is designed to cause as little disruption to the airflow as possible and feels very open in the valve register, even through the pedal register.

The Rotax and Voigt valves are very similar in their playing characteristics and are ideal if you prefer slightly more playing resistance, which can help with projection and focus.

They are nowhere near as “stuffy” as a traditional rotary valve and the response on the valve is remarkably consistent when going from the open to the valve side of the trombone.

Valve wrap tubing bore size = .547” (13.894mm)

The majority of our Michael Rath instruments are supplied highly polished with a thin clear lacquer coating. We found that applying thicker coats of lacquer “deadens” the instrument, leading to it being unresponsive and dull. However, despite only having a thin coat of lacquer, proper care and maintenance will keep the instrument always looking at its best.

Other finishes are available, such as brushed lacquer, coloured lacquer or without a lacquer coating at all. These can be applied to individual parts or to a complete instrument, giving you the opportunity to create an instrument uniquely yours.

Choice of a leadpipe is an important factor in determining the sound, and particularly the response, of an instrument. Leadpipes are available for the R4F in four materials: brass, nickel silver, sterling silver and bronze, across five sizes.

The standard leadpipe for each trombone model is in brass, whilst nickel silver gives a more brilliant sound and silver a darker, denser sound quality.

Extensive research has shown that, for most players, the standard taper leadpipe in brass is the best solution.

However in addition to our standard leadpipe, we also have leadpipe options based on the standard taper that are more focused , “A”, or more open ,”B”.

It is important to bear in mind that a leadpipe should also be a suitable match not only for your trombone but also for your mouthpiece.

For a large cup mouthpiece you may find that a leadpipe with a more open taper and feel is preferable. A shallow cup may be better with a tighter more focused leadpipe. And if you are changing your mouthpiece, a change of leadpipe may also be appropriate.
